AudioPressBox 是專業的新聞發布會音頻分配放大器

簡稱: 記者箱, 音源分配器

記者箱或音源分配器 是 多路輸出單音頻源的設備。 可同一時間供多人連接以錄取音頻信號。

因此是每次新聞活動的專業必備方案,使新聞界的所有成員都能獲取音頻。


AudioPressBox® 是由中歐公司 MediaTech 開發和製造的多功能音源分配器設備。 我們一直認真考慮不同客戶的實際需要和各種要求,設計出多款獨特系列的記者箱, 以供給不同工程方案和多變的租賃市場使用。

並確保每台設備都具有最高的質量標準,甚至超出客戶的期望。






APB-112SB-D 有源便攜式記者箱

帶有1 DANTE輸入通道,12 LINE / Mic輸出

  • 1通道DANTE輸入-RJ45 ethercon
  • 12個獨立變壓器隔離平衡輸出
  • 每個輸出均可在LINE或MIC電平之間切換
  • 僅通過DANTE網絡的PoE為設備供電
  • 多得帶有DANTE的設計,您可以通過添加其他APB-112 SB-D輕鬆擴展通道數或輸出數




APB-224C 有源便攜式記者箱

帶有2路輸入(A,A + B,B)和24路輸出,並帶有內置充電式鋰電池。

  • 2個MIC(幻象電源)/ LINE輸入–平衡式輸入連靈敏度控制
  • 有三個輸出組合可自由選擇 A /(A + B)/ B
  • 24個高質量獨立平衡輸出
  • 每個輸出均可在 MIC 或 LINE 電平之間切換
  • 2個內部輸出組:輸出A x 12和 輸出B x 12
  • 每個輸入通道帶有切換式高通濾波器
  • 每個輸入通道帶有切換式壓縮器和限幅器
  • 每個輸入/輸出通道帶有PFL / AFL
  • 恆定電平的測試信號振盪器,無誤開關操作
  • PFL / AFL監聽輸出
  • 內置鋰電池,具有微處理器控制的電池管理
  • 內置鋰電池,充滿電後約可用10小時




APB-1.32CB -32 位便攜式音源分配組合套裝

帶有1個驅動單元(D100)和4個便攜式擴展器,每個擴展器具有8個LINE / MIC輸出(008 SB-EX)

包括

A) D100便攜式驅動器x 1

  • 1個LINE平衡式輸入
  • 切換式高通濾波器
  • 切換式壓縮器和限幅器提供給輸入通道
  • 2個獨立的緩衝輸出,給與6個8輸出擴展器使用

008 SB-EX 8輸出擴展器 x 4

  • 1個LINE平衡式輸入
  • 8個高質量內置平衡輸出,獨立隔離變壓器
  • 每個輸出均可在MIC或LINE電平之間切換


AudioPressBox is a professional press conference audio distribution amplifier.

Mult Box and Audio Devices | AudioPressBox

Mult box or also known as press box is a device with multipe outputs of a single audio source. It allows people that are connected to it, record the audio signal.

Mult box is a professional solution for every press event that allows all members of the press to gain full access to the audio.


AudioPressBox’s® implements and distributes an input signal to multiple independent outputs. Here at AudioPressBox we take wishes and requests of our customers into serious consideration and that is why we managed over time through a close work with our clients to manufacture unique range of Mult Box devices suitable for both System Integrators and Rental Companies.

We ensure that every device has the highest quality standards and always exceeds our customers expectations.

AudioPressBox® is a mult box device developed and manufactured by a European company MediaTech Central Europe.






APB-112SB-D – Active, Portable, AudioPressBox unit, 1 channel DANTE input, 12 LINE/Mic outputs

  • 1 channel DANTE input - RJ45 ethercon
  • 12 high quality balanced, individually transformer isolated outputs.
  • each output is switchable between Line or MIC level.
  • the unit is powered only via PoE from DANTE network
  • thanks to DANTE patching you can easily expand number of channels or number of outputs by adding other APB-112 SB-D




APB-224C - Active, Portable AudioPressBox with 2 routable LINE inputs (A, A+B, B) and 24 LINE/MIC outputs, built-in rechargable Li-Ion AccuPack

  • 2 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD
  • Each Input is routable to A/(A+B)/B Outputs Group
  • 24 High quality independent transformer balanced and isolated outputs
  • Each Output is switchable between MIC or LINE level
  • 2 internal Output Groups: 12x Output A and 12x Output B
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for each Input channel
  • PFL/AFL for each Input/Output channel
  • Constant level Test signal oscillator with no mistake switch operation
  • Headphones control Output for PFL/AFL
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hour full load capacity. Note: AccuPack is placed inside the unit




APB-1.32CB – Portable AudioPressBox bundle with 1 Drive unit (D100) and 4 Portable expanders each with 8 LINE/MIC outputs (008 SB-EX)

D100 (x1 included)

  • Portable Drive Unit
  • 1 Balanced LINE Input
  • Switchable High-Pass filter
  • Switchable Compressor and Limiter for Input channel
  • 2 separately buffered Outputs for 6 AudioPressBox 8-output expanders.

008 SB-EX (x4 included)

  • 1 Balanced LINE Input
  • 8 High quality internal balanced Outputs, independent transformer isolated
  • Each Output is switchable between MIC or LINE level





APB-116R - Rack AudioPressBox with 1 LINE input and 16 LINE/MIC outputs

  • 1 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD
  • 16 High quality independent transformer balanced and isolated outputs
  • Each Output is switchable between MIC or LINE level
  • 2 internal Output Groups: 8x Output A and 8x Output B
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for each Input channel
  • Constant level Test signal oscillator with no mistake switch operation
  • Headphones control Output




APB-116SB – Active, Portable AudioPressBox with 1 LINE input and 16 LINE/MIC outputs, built-in rechargable Li-Ion AccuPack

  • LINE Input – balanced with ajustable gain -10db to +20 dB
  • 16 High quality independent transformer balanced and isolated outputs
  • Each Output is switchable between MIC or LINE level
  • Built in High-Pass filter on the frequency of 40Hz
  • Switchable Compressor and Limiter for Input channel
  • Nominal Output level is selectable -6 dBu, 0 dBu, +4 dBu and +6 dBu
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hour full load capacity. Note: AccuPack is placed inside the unit

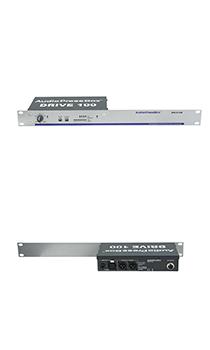

APB-D100R – Active, Rack AudioPressBox Drive unit with 1 LINE input and 2 buffered outputs for 6 AudioPressBox 8- LINE/MIC output expanders.

  • Rack Drive Unit
  • 1 Balanced LINE Input
  • Switchable High-Pass filter
  • Switchable Compressor and Limiter for Input channel
  • 2 separately buffered Outputs for 6 AudioPressBox 8- LINE/MIC output expanders.


 音源分配器 (記者箱)



AudioPressBox-APB-320-C-USB-4_small.jpgAudioPressBox-APB-320-C-USB-case-small.jpgAPB-320-C-USB-ecosystem_small_230.jpgAudioPressBox-APB-320-C-USB-6_230.jpg

NEW

AudioPressBox APB-320 C-USB

2組MIC /LINE 輸入 16個XLR高品質獨立音訊輸出 內置限壓器防止過大

付設4 組USB —C電腦聲音輸入輸出介面, 低燥音 直接簡單接駁

電腦設備, ipad windows IOS

20 小時運作鋰電池設計提升流動採訪記者靈活性,

6款顏色堅固防水保護箱 可選

網路直播用音頻capture / 輸出好幫手

記者會及現場音響製作, production 推介裝備

應用於影視製作,多媒體製作,錄音室多款用途 。

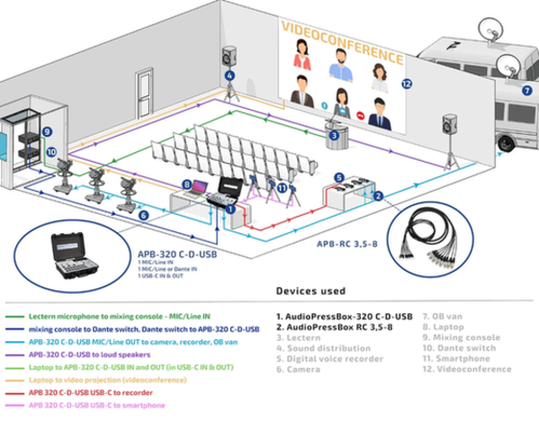

Professional portable, active, pressbox with 2 Analog Line/Mic inputs, 1 Digital USB-C input & output and 16 Analog Line/Mic & 4 Digital USB-C outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case. The USB-C also allows a video conference in & out connection for a hybrid press conference.

  • 2 Analog MIC (phantom power) / LINE inputs – balanced with gain control and 26dB PAD
  • 1 Digital USB-C input & output
  • 16 Analog XLR balanced and individually transformer isolated outputs
  • XLR outputs are switchable between MIC or LINE output level
  • 4 Digital USB-C outputs
  • Built-in Compressor and Limiter for Analog (XLR) inputs
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 20 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
  • On unit printed QR code for online access to manual, user guide and video guide
Download 產品說明

APB-320_C-USB_data_sheet_ver1.pdf

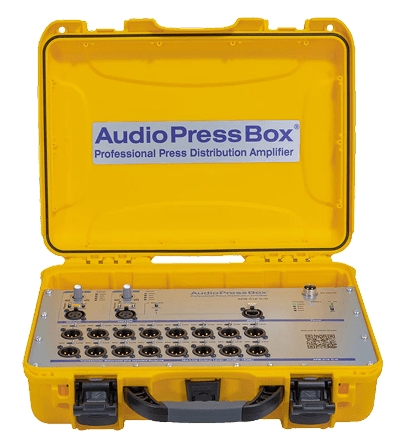

AudioPressBox APB-216 C



Professional portable 1 channel active pressbox with 2 Line/Mic inputs and 16 Line/Mic outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case.

APB-216-C-data-sheet-2022-10.pdf

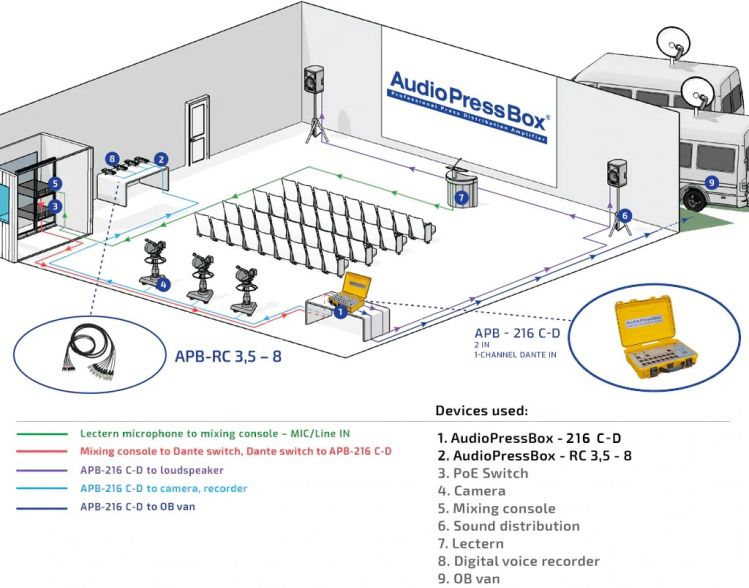

AudioPressBox APB-216 C-D

Professional portable, active, Dante-enabled pressbox with 2 Line/Mic & 1 ch Dante inputs and 16 Line/Mic outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case.

APB-216-C-D-data-sheet-2022-10.pdf



AudioPressBox APB-112 IW-D

Professional, in wall, active, AudioPressBox unit with 1 channel DANTE input and 12 LINE/Mic outputs. It is powered via PoE so you need only 1 cable for the signal and power. The easy install allows for quick setup.


APB-116SB

特點 :
 - 16 個麥克風/線路輸出
 - 平衡的線輸入與可調增益
 - 完美的信號水準
 - 內置可充電電池模組可以獨立用電

APB-124SB

特點 :
 24 麥克風/線路輸出
 - 12 個小時在滿負荷工作時間
 - 完美的信號水準
 - 內置可充電電池模組可以獨立用電

APB-224C

特點 :
 - 24 個麥克風/線路變壓器隔離輸出
 - 完美的信號水準
 - 內置的鋰離子 10 個小時工作時間
 - 質輕、 專業設計、 看起來很好在桌子上

APB-448SB

特點 :
 - 48 麥克風/線路的便攜版本的輸出
 - 擴展程式可以連接到擴展到高達 96 輸出
 - 壓縮機 & 限流器對每個輸入,PFL 進行良好的監視
 - 完善的監控可能性來檢查和設置你需要的電平

APB-P112SB

特點 :
 - 12 麥克風輸出
 - 平衡和獨立隔離變壓器
 - 完美的信號水準

APB-116R

特點 :
 - 安裝到標準 19"機架
 - 16 個麥克風/線路變壓器隔離輸出
 - 完美的信號水準
 - 電源保持通電兩個電源之間切換是無縫

APB-208R

特點 :
 - 安裝到標準 19"機架
 - 8 個麥克風/線路變壓器隔離輸出
 - 完美的信號水準

Audiolink AF-25

特點 :
 - 2輸入25輸出音頻訊號
 - 每組輸出有四種輸出插座
 - 易於匹配錄音機和攝象機
 - 可以串聯多台機組使用增加輸出通道
 - 具備 平衡式MIC/LINE 輸入和輸出電平選擇器
 - 具備 VU電平表監察音量
 - 堅固開蓋式運載箱,留有位置存放連接線和指示牌



Taiden HCS-4112/10

特點 :
 - 音訊信號埠:3芯XLR平衡輸入/輸出
 - 1路輸入通道,10路輸出通道(增益可調,帶音訊監聽功能)
 - 每路輸出都內置了獨立的地線隔離裝置(採用了10個隔離變壓器),可完全隔離輸入與輸出之間的信號干擾及消除供電系統、地線造成的干擾
